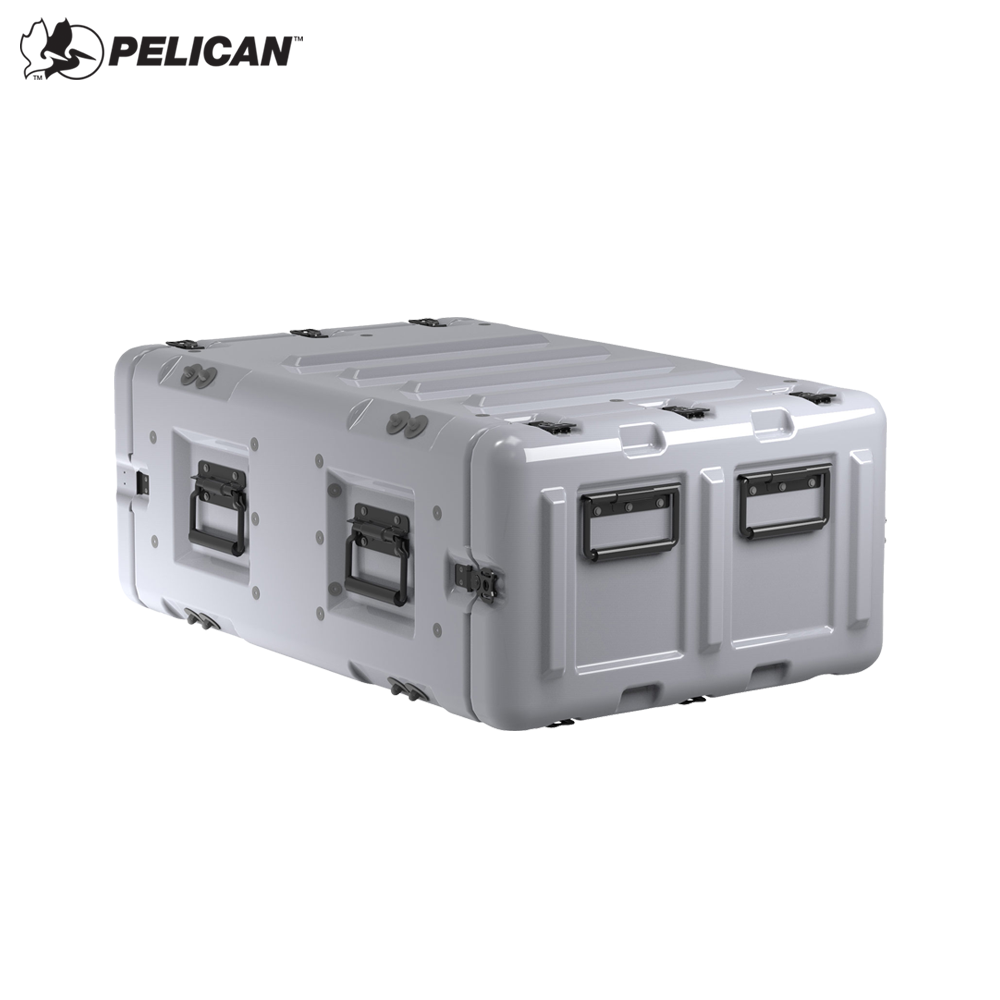

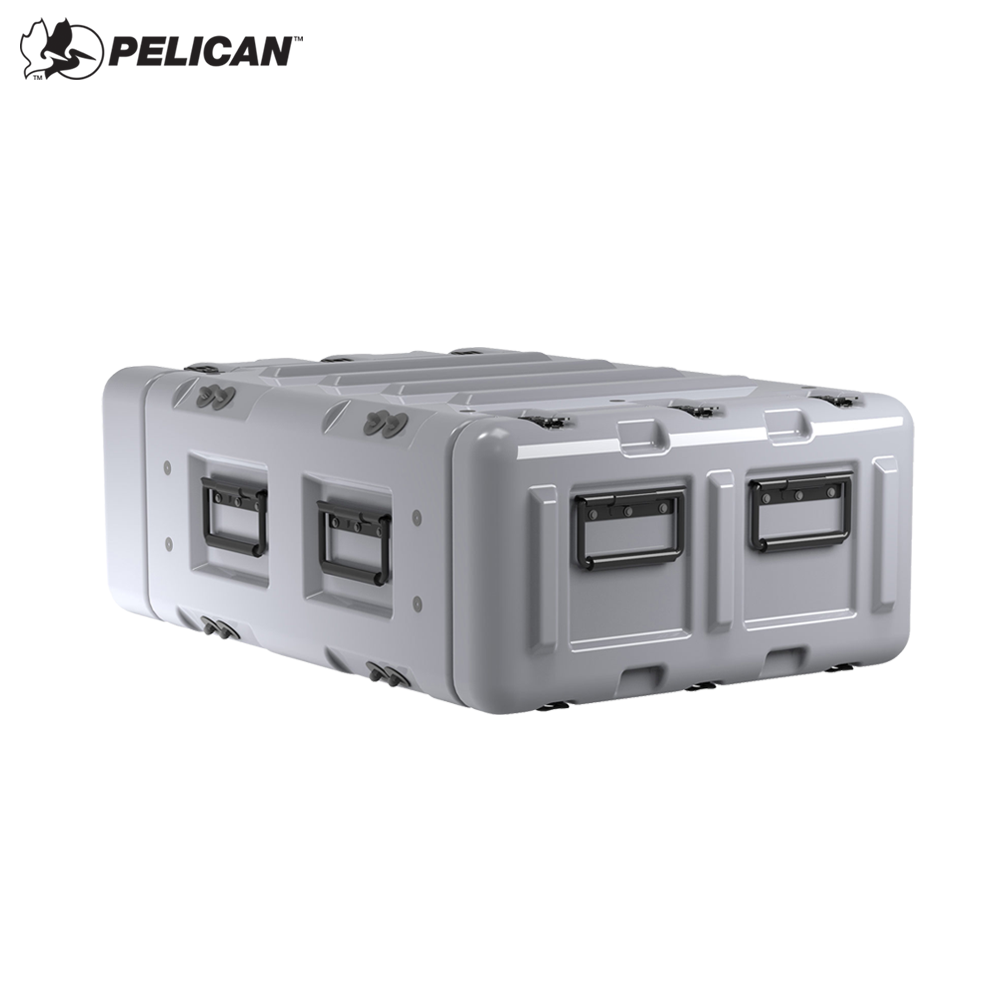

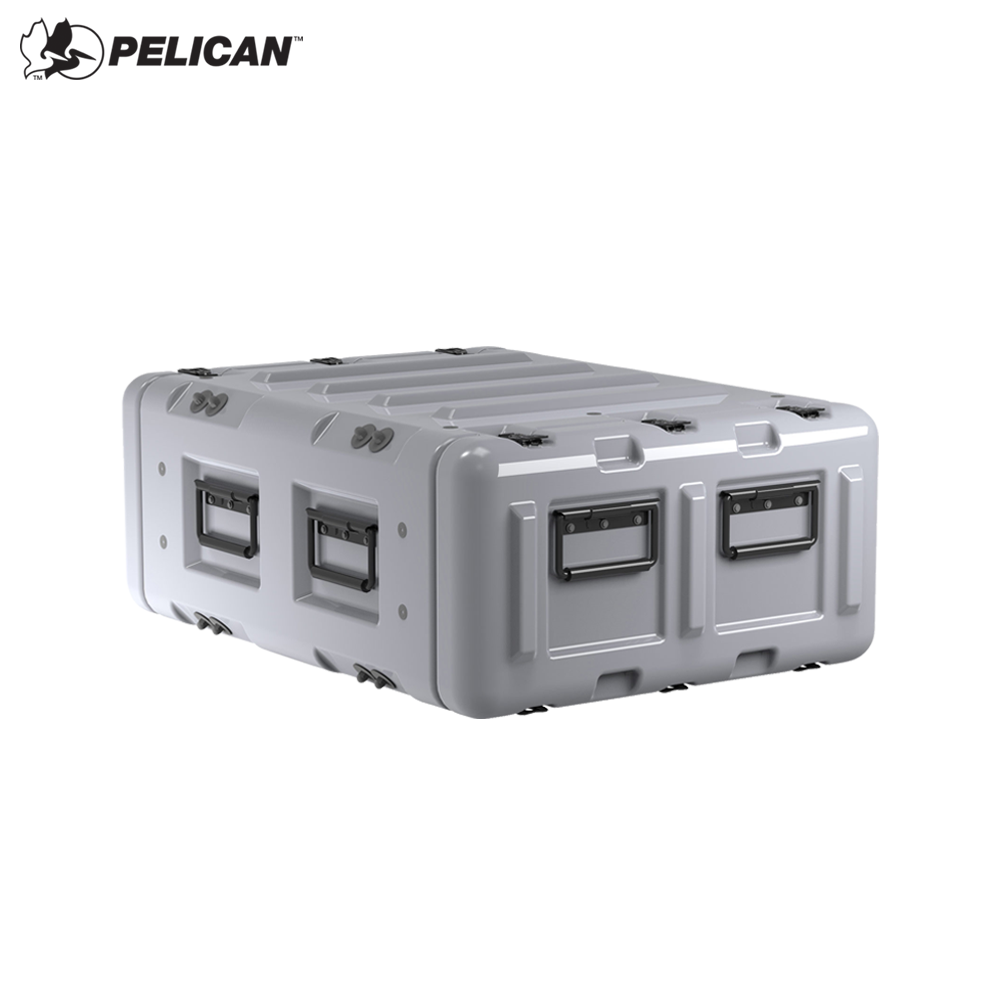

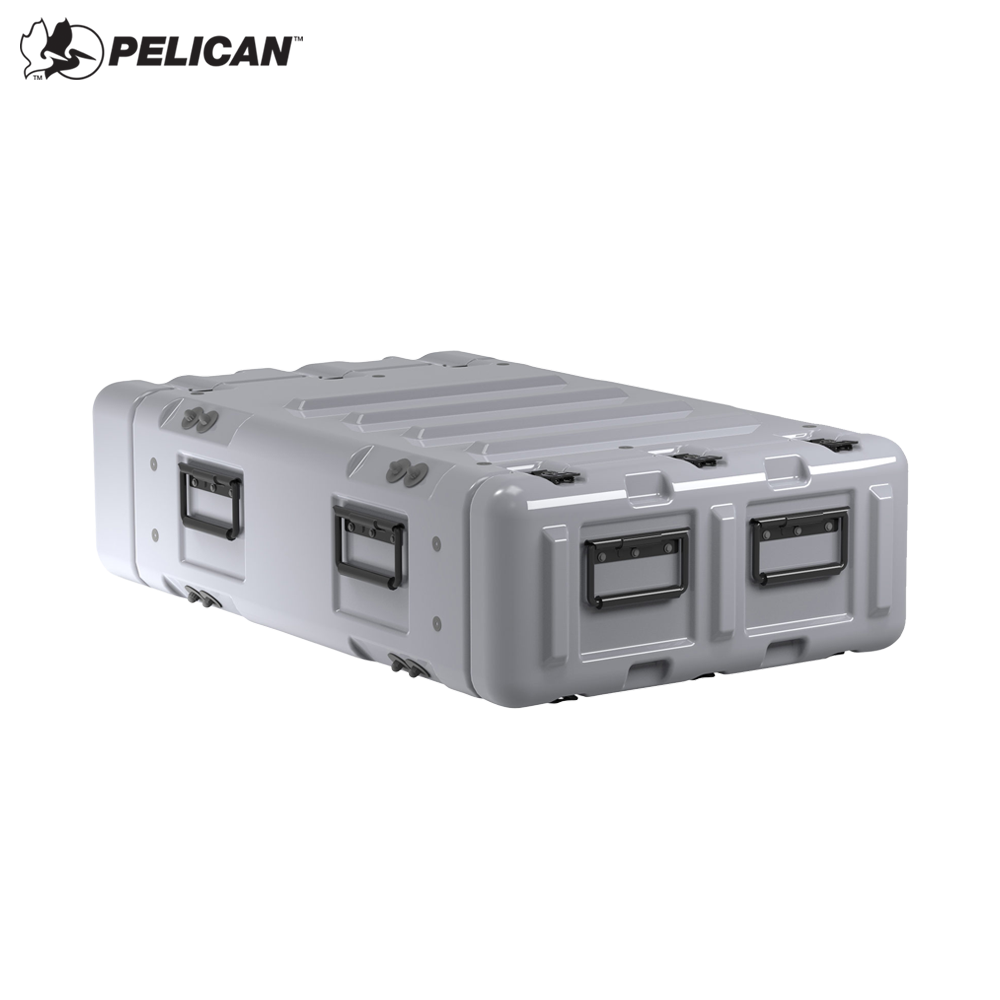

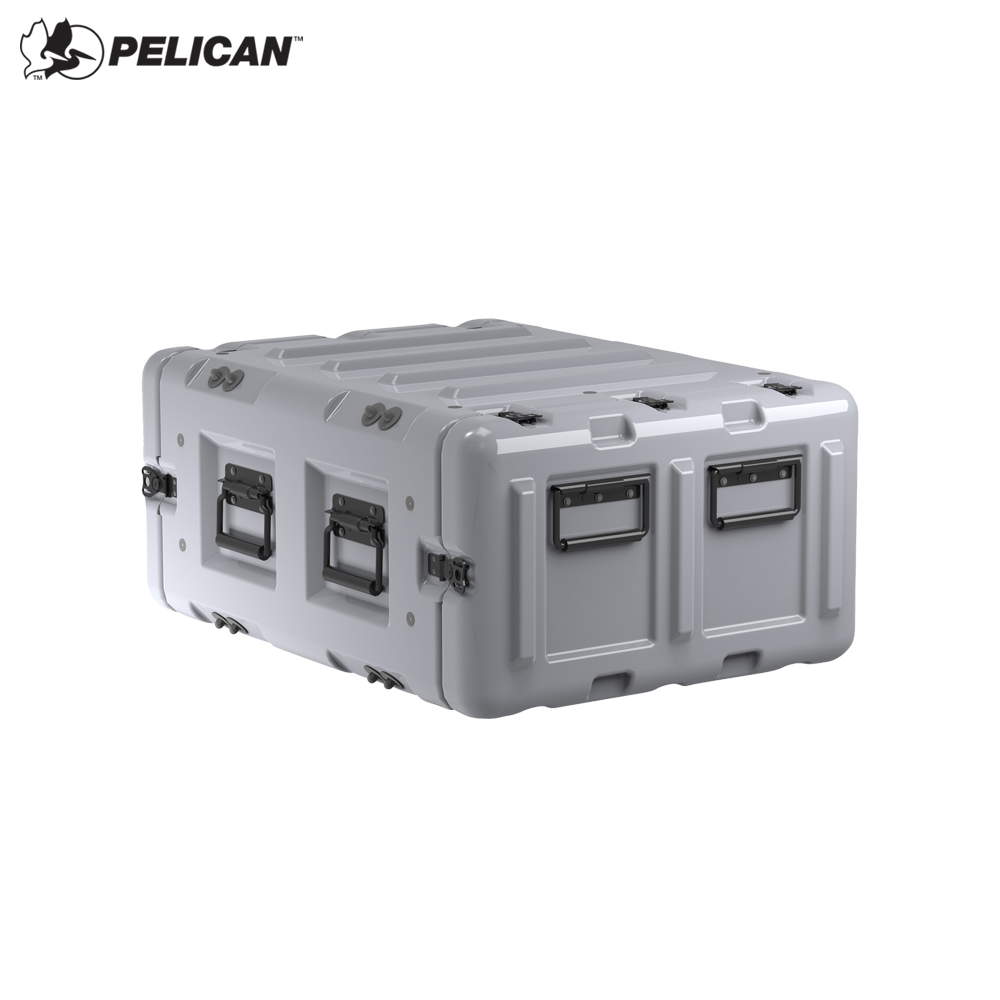

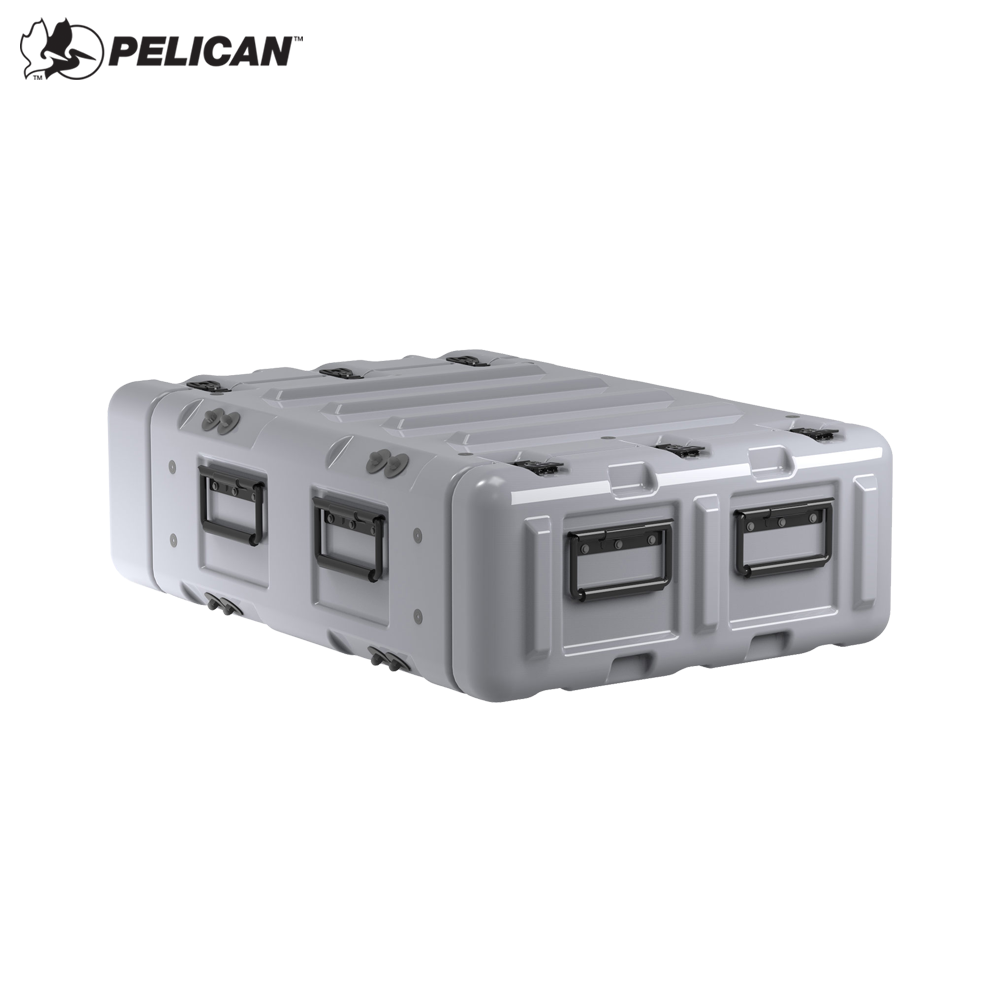

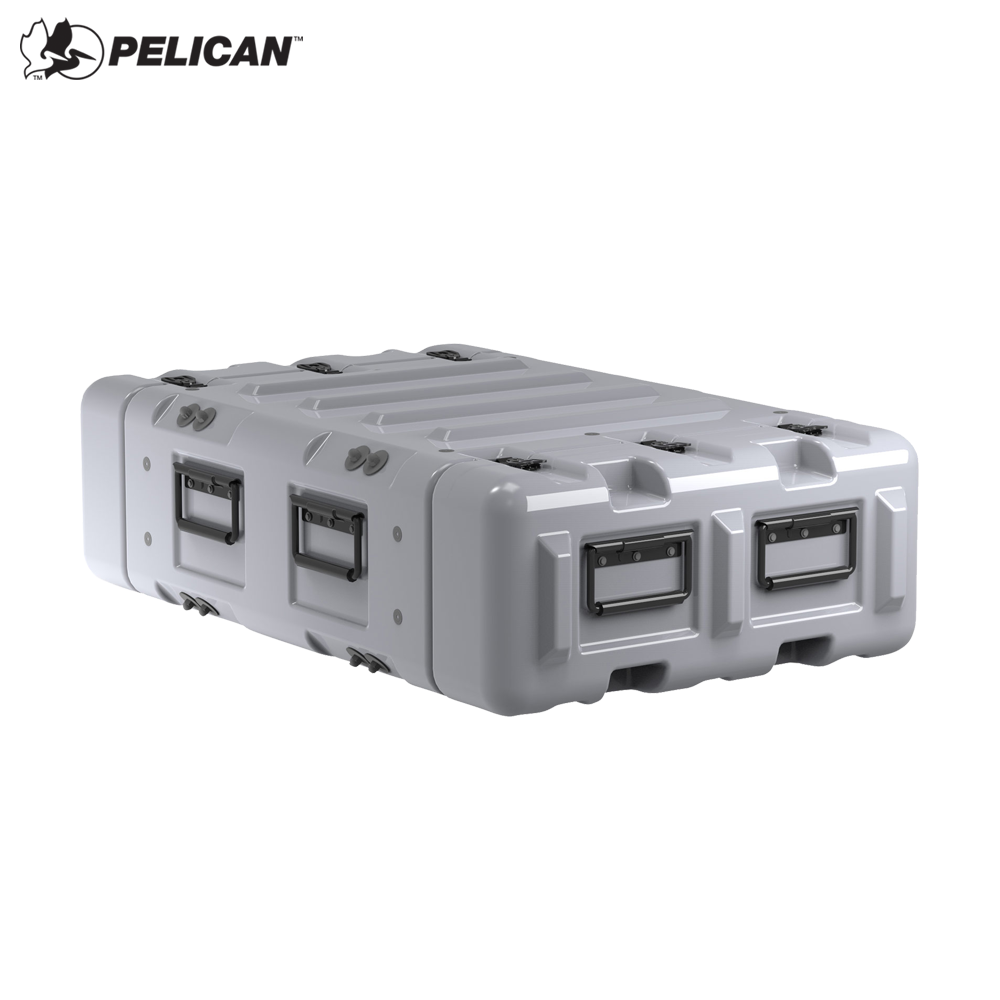

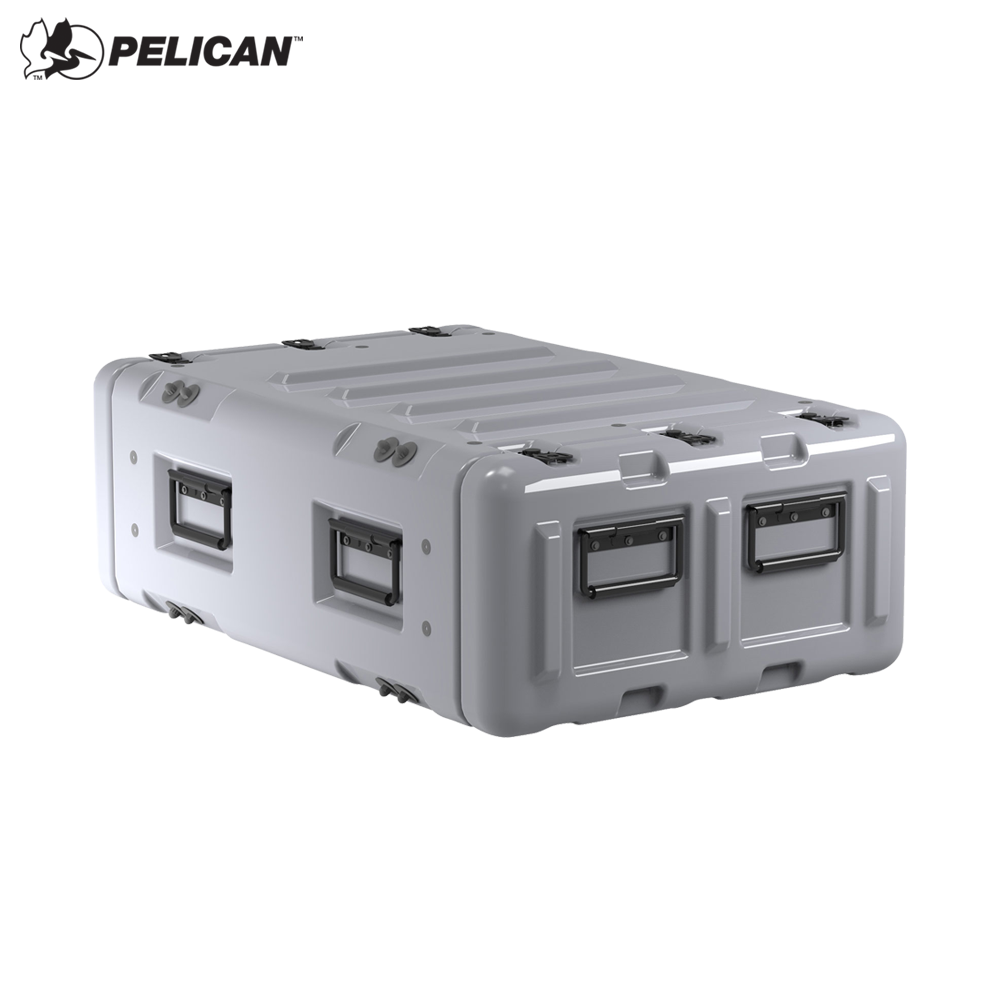

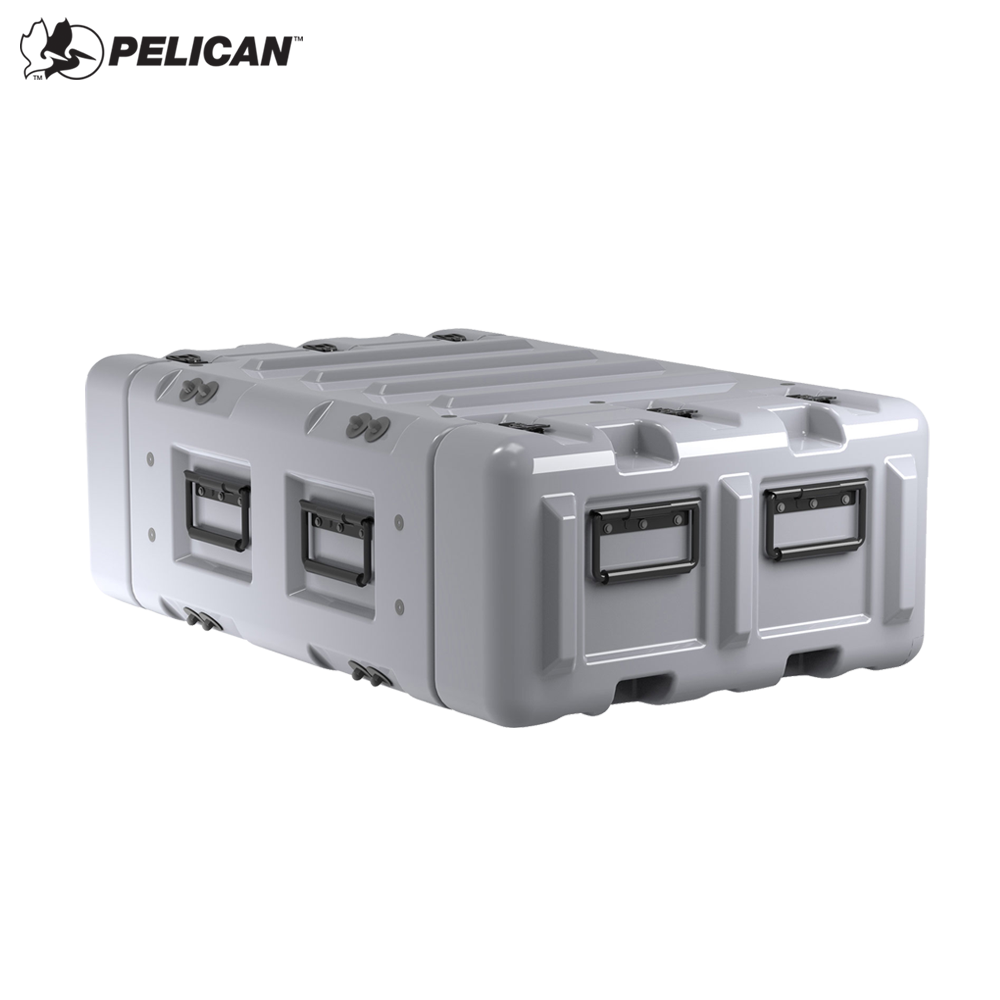

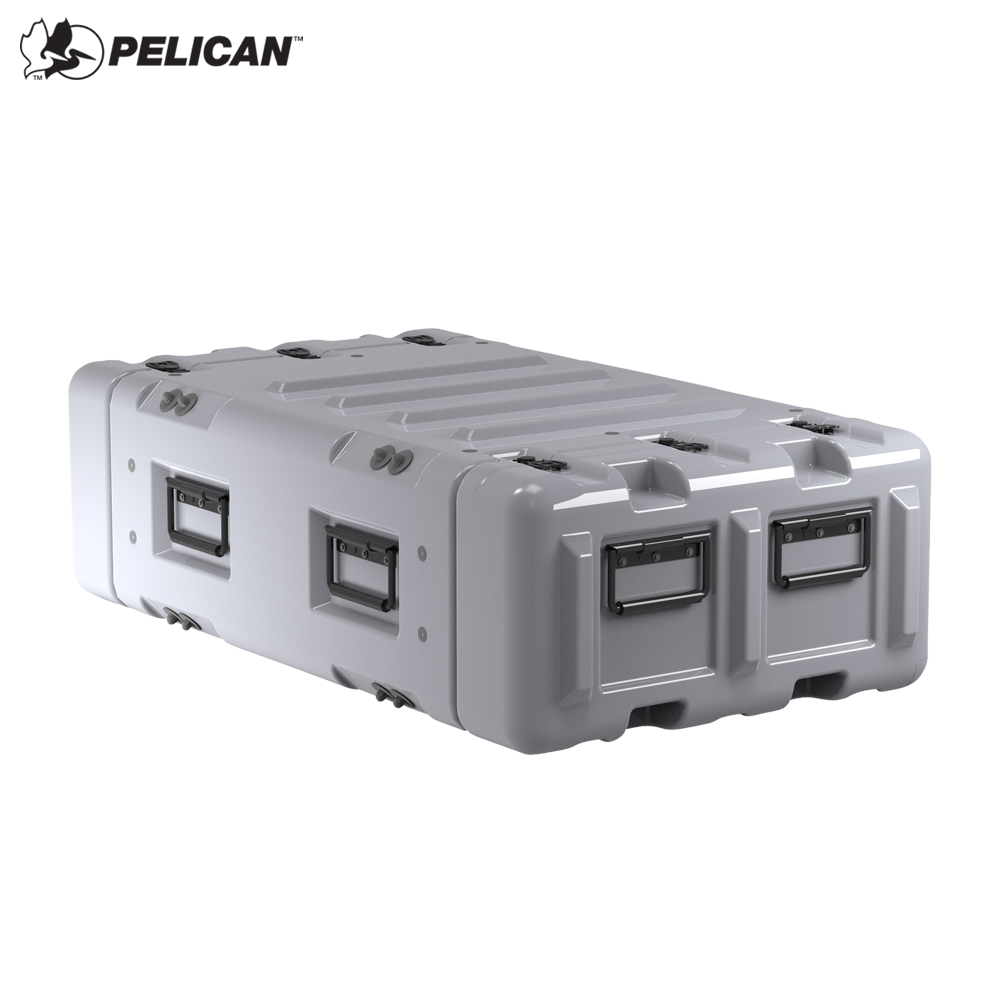

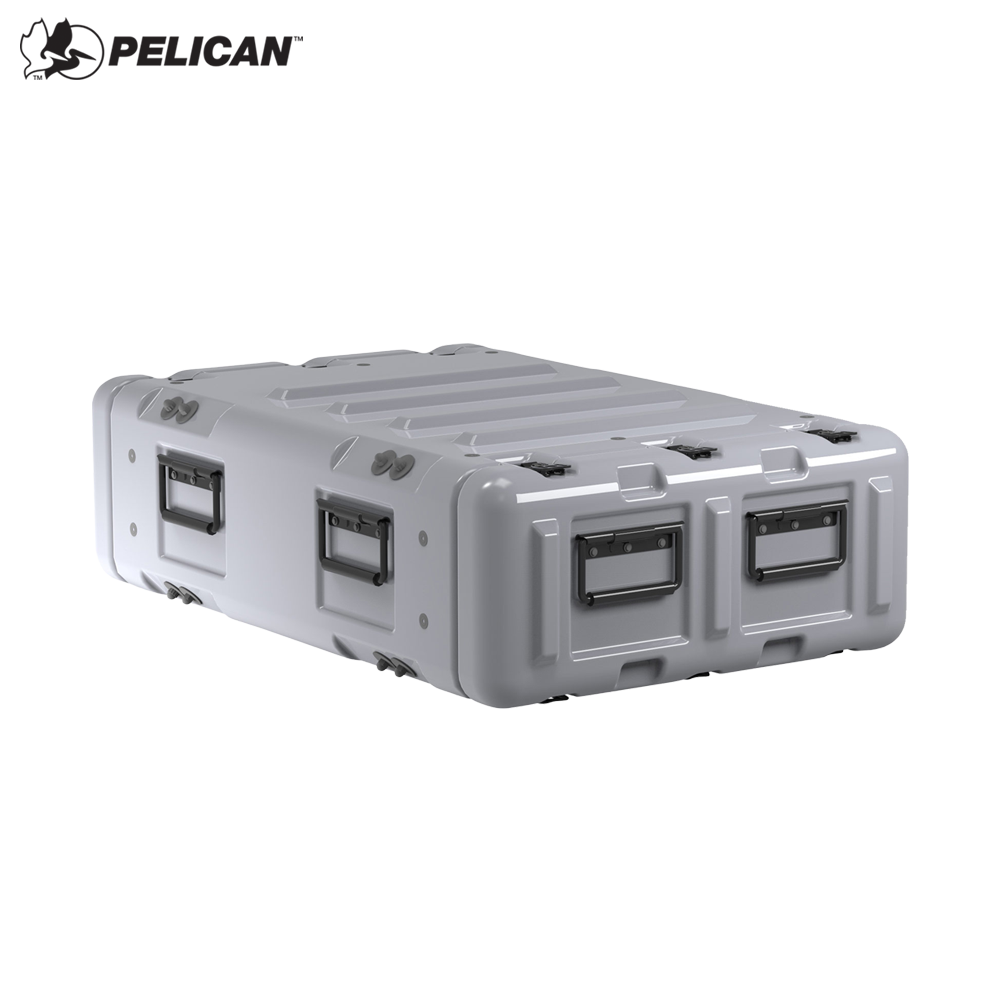

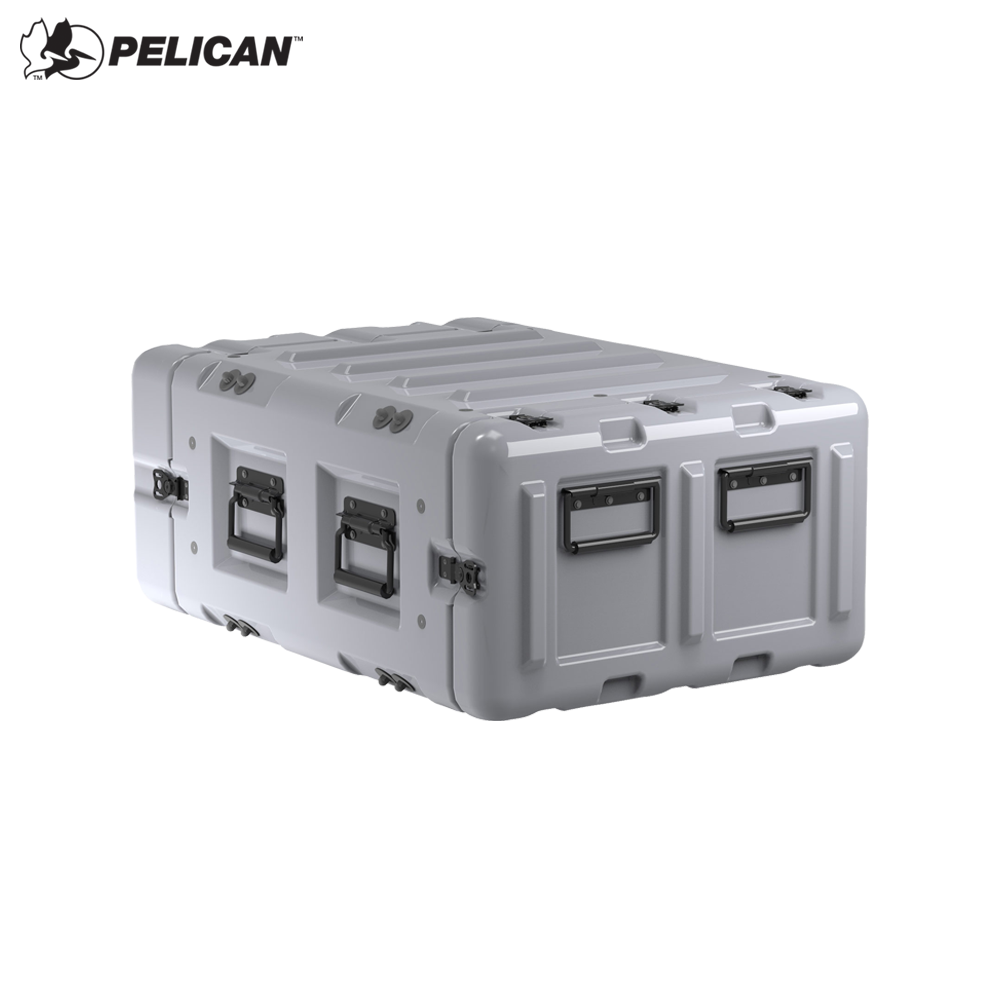

Heavy-Duty Case with Good Vibration Protection


The MAC Rack™ case is textured low-visibility roto molded case with a 19" wide

and a 20" or 24" deep EIA standard rack.


Compact and light weight, MAC Rack™ cases boast a smaller footprint to make

the most of limited space. The MAC Rack™ case protects with the same

rotomolded outer shell and 19" EIA shock mounted rack as the Classic Rack, but

with a smaller sway space.

The MAC Rack™ case is perfect for less fragile equipment that still needs

protection from shock, vibration, moisture, and impact along with the advantages

of a heavy-duty case.

Specifications



Sizes

  • 3U, 4U, 5U, 7U, 9U, 11U and 14U

G-Rating

  • 50 - 80

Payload

  • 8-shock mounts: Up to 170 lbs
  • 6-shock mounts: 160 - 200 and 200 - 340 lbs

Sway Space

  • 0.85" sway for the ability to decelerate shock



Base Features

  • Color: Grey (133)
  • Zinc Cobalt Black Non-Locking Catch-and-Strike Hardware (HCB)
  • Spring Loaded Stainless Steel Black Handle (SSB)
  • Plastic Comfort Grip Handles
  • 8 Shock Isolations Mounts (24 lbs to 100 lbs payloads)
  • Heavy Duty Reinforced Aluminum Rack Frame
  • Edge Casters (on cases with 5" Rear Lids only)
  • Standard Labeling











  •


Options/Accessories


  • 13 Optional Colors
  • Shock Mount System
  • Stainless Steel Black (SSB) Hardware
  • Locking Removable Casters
  • Lockable Cable Catches
  • Stainless Steel Handles
  • Keyboard Tray
  • Mold-In Edge Casters
  • Lifting Rings
  • Caster Storage in Lid
  • Sliding Shelves
  • Card Holders
  • Bezel Plate
  • Lid Hangers
  • Lid Pouch
  • Stencils
  • Drawers
  • Labels
  • Lock 'N Load Removable Rack
  • Horizontal, Vertical, and Bottom Supports for Heavy Weighted Payload
  • Pressure Relief Valve and Closed Loop Gasket

Shock/Vibration System


Cylindrical Shock Mounts isolate equipment from vibration as well as impact forces. Shock mounts vary in size depending on protection requirements - from delicate equipment to rugged electronics.





Applications


> Military Rapid Deployment

> Rack Mountable Precision Test Equipment

> Electro-Mechanical

> Medical and Biological Diagnostic       Equipment

> Memory Storage Devices

> Meteorological Instruments

> Mobile Operations

> Broadcast and Video Gear

>  Laboratory Equipment

> Aerospace Instrumentation






Customization


Classic Rack cases are fully configurable and made to order. They can also be customized by our Technical Sales solution team. Call if you need a 1U extension to any of these standard U sizes.



Catalog
U Size
Rack Depth
Lid Depth
Back Lid Depth
Weight

MR1907-05/29/05

3U
24.00"
(61 cm)
4.40"
(11.2 cm)
4.40"
(11.2 cm)
34 lbs

MR1907-02/29/05

3U
24.00"
(61 cm)
2.20"
(5.6 cm)
4.40"
(11.2 cm)
33 lbs

MR1907-05/25/05

3U
24.00"
(61 cm)
2.20"
(5.6 cm)
2.20"
(5.6 cm)
32 lbs

MR1907-02/25/05

3U
20.00"
(50.8 cm)
4.40"
(11.2 cm)
4.40"
(11.2 cm)
33 lbs

MR1907-02/25/05

3U
20.00"
(50.8 cm)
2.20"
(5.6 cm)
4.40"
(11.2 cm)
32 lbs

MR1907-02/25/02

3U
20.00"
(50.8 cm)
2.20"
(5.6 cm)
2.20"
(5.6 cm)
31 lbs

MR1909-05/29/05

4U
24.00"
(61 cm)
4.40"
(11.2 cm)
4.40"
(11.2 cm)
37 lbs

MR1909-02/29/05

4U
24.00"
(61 cm)
2.20"
(5.6 cm)
4.40"
(11.2 cm)
36 lbs

MR1909-02/29/02

4U
24.00"
(61 cm)
2.20"
(5.6 cm)
2.20"
(5.6 cm)
35 lbs

MR1909-05/25/05

4U
20.00"
(50.8 cm)
4.40"
(11.2 cm)
4.40"
(11.2 cm)
36 lbs

MR1909-02/25/05

4U
20.00"
(50.8 cm)
2.20"
(5.6 cm)
4.40"
(11.2 cm)

35 lbs

MR1909-02/25/02

4U
20.00"
(50.8 cm)
2.20"
(5.6 cm)
2.20"
(5.6 cm)
33 lbs

MR1910-02/25/02

5U
24.00"
(61 cm)
2.20"
(5.6 cm)
4.40"
(11.2 cm)
39 lbs

MR1910-05/29/05

5U
24.00"
(61 cm)
2.20"
(5.6 cm)
2.20"
(5.6 cm)
37 lbs

MR1910-05/25/05

5U
20.00"
(50.8 cm)
4.40"
(11.2 cm)
4.40"
(11.2 cm)
39 lbs

MR1910-02/25/05

5U
20.00"
(50.8 cm)
2.20"
(5.6 cm)
4.40"
(11.2 cm)
38 lbs

MR1910-02/25/02

5U
20.00"
(50.8 cm)
2.20"
(5.6 cm)
2.20"
(5.6 cm)
36 lbs

MR1910-05/29/05

5U
24.00"
(61 cm)
4.40"
(11.2 cm)
4.40"
(11.2 cm)
40 lbs

MR1913-05/29/05

6U
24.00"
(61 cm)
4.40"
(11.2 cm)
4.40"
(11.2 cm)
43 lbs

MR1913-02/29/05

6U
24.00"
(61 cm)
2.20"
(5.6 cm)
4.40"
(11.2 cm)
42 lbs

MR1913-02/29/02

6U
24.00"
(61 cm)
2.20"
(5.6 cm)
2.20"
(5.6 cm)
40 lbs

MR1913-05/25/05

6U
20.00"
(50.8 cm)
4.40"
(11.2 cm)
4.40"
(11.2 cm)
42 lbs

MR1913-02/25/05

6U
20.00"
(50.8 cm)
2.20"
(5.6 cm)
4.40"
(11.2 cm)
41 lbs

MR1913-02/25/02

6U
20.00"
(50.8 cm)
2.20"
(5.6 cm)
2.20"
(5.6 cm)
39 lbs

MR1914-05/29/05

7U
24.00"
(61 cm)
4.40"
(11.2 cm)
4.40"
(11.2 cm)
47 lbs

MR1914-02/29/05

7U
24.00"
(61 cm)
2.20"
(5.6 cm)
4.40"
(11.2 cm)
44 lbs

MR1914-02/29/02

7U
24.00"
(61 cm)
2.20"
(5.6 cm)
2.20"
(5.6 cm)
42 lbs

MR1914-05/25/05

7U
20.00"
(50.8 cm)
4.40"
(11.2 cm)
4.40"
(11.2 cm)
44 lbs

MR1914-02/25/05

7U
20.00"
(50.8 cm)
2.20"
(5.6 cm)
4.40"
(11.2 cm)
43 lbs

MR1914-02/25/02

7U
20.00"
(50.8 cm)
2.20"
(5.6 cm)
2.20"
(5.6 cm)
42 lbs

MR1917-05/25/05

9U
20.00"
(50.8 cm)
4.40"
(11.2 cm)
4.40"
(11.2 cm)
48 lbs

MR1917-02/25/05

9U
20.00"
(50.8 cm)
2.20"
(5.6 cm)
4.40"
(11.2 cm)
47 lbs

MR1917-02/25/02

9U
20.00"
(50.8 cm)
2.20"
(5.6 cm)
2.20"
(5.6 cm)
46 lbs

MR1917-05/29/05

9U
24.00"
(61 cm)
4.40"
(11.2 cm)
4.40"
(11.2 cm)
49 lbs

MR1917-02/29/05

9U
24.00"
(61 cm)
2.20"
(5.6 cm)
4.40"
(11.2 cm)
48 lbs

MR1917-02/29/02

9U
24.00"
(61 cm)
2.20"
(5.6 cm)
2.20"
(5.6 cm)
47 lbs

MR1921-02/29/02

11U
24.00"
(61 cm)
2.20"
(5.6 cm)
2.20"
(5.6 cm)
51 lbs
MR1921-05/25/05
11U
20.00"
(50.8 cm)
4.40"
(11.2 cm)
4.40"
(11.2 cm)
52 lbs

MR1921-02/25/05

11U
20.00"
(50.8 cm)
2.20"
(5.6 cm)
4.40"
(11.2 cm)
51 lbs

MR1921-02/25/02

11U
20.00"
(50.8 cm)
2.20"
(5.6 cm)
2.20"
(5.6 cm)
50 lbs

MR1921-05/29/05

11U
24.00"
(61 cm)
4.40"
(11.2 cm)
4.40"
(11.2 cm)
53 lbs

MR1921-02/29/05

11U
24.00"
(61 cm)
2.20"
(5.6 cm)
4.40"
(11.2 cm)
52 lbs

MR1923-02/29/02

12U
24.00"
(61 cm)
2.20"
(5.6 cm)
2.20"
(5.6 cm)
53 lbs

MR1923-05/25/05

12U
20.00"
(50.8 cm)
4.40"
(11.2 cm)
4.40"
(11.2 cm)
54 lbs

MR1923-02/25/05

12U
20.00"
(50.8 cm)
2.20"
(5.6 cm)
4.40"
(11.2 cm)
53 lbs

MR1923-02/25/02

12U
20.00"
(50.8 cm)
2.20"
(5.6 cm)
2.20"
(5.6 cm)
52 lbs

MR1923-05/29/05

12U
24.00"
(61 cm)
4.40"
(11.2 cm)
4.40"
(11.2 cm)
55 lbs

MR1923-02/29/05

12U
24.00"
(61 cm)
2.20"
(5.6 cm)
4.40"
(11.2 cm)
54 lbs

MR1926-02/29/05

14U
20.00"
(50.8 cm)
4.40"
(11.2 cm)
4.40"
(11.2 cm)
57 lbs

MR1926-02/29/02

14U
20.00"
(50.8 cm)
2.20"
(5.6 cm)
4.40"
(11.2 cm)
57 lbs

MR1926-05/25/05

14U
20.00"
(50.8 cm)
2.20"
(5.6 cm)
2.20"
(5.6 cm)
56 lbs

MR1926-05/29/05

14U
24.00"
(61 cm)
4.40"
(11.2 cm)
4.40"
(11.2 cm)
58 lbs

MR1926-02/29/05

14U
24.00"
(61 cm)
2.20"
(5.6 cm)
4.40"
(11.2 cm)
58 lbs

MR1926-02/29/02

14U
24.00"
(61 cm)
2.20"
(5.6 cm)
2.20"
(5.6 cm)

57 lbs
