Off-the-Shelf Industry-Standard Square Hole Rack Cases


V-Series cases utilize a full-boxed 19" steel rack with an industry-standard square

hole pattern, so hanging electronics with tab mounts is a snap. Just attach the clip

nut onto a square hole with your choice of 10-32 Imperial or M6 Metric clip-nuts.


Now you can get pro-grade rack mount cases in days instead of weeks. Pelican>-

Hardigg maintains inventory on both coasts, reducing your freight cost and transit

time.

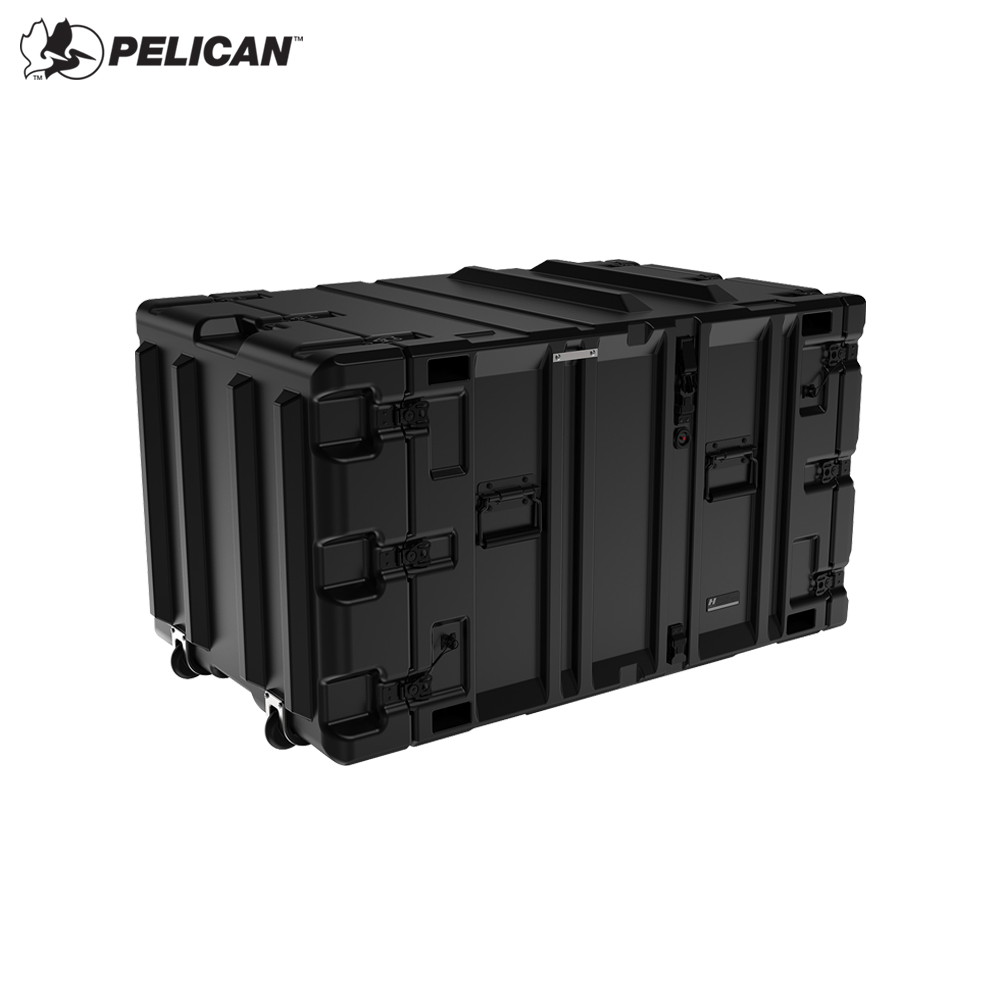

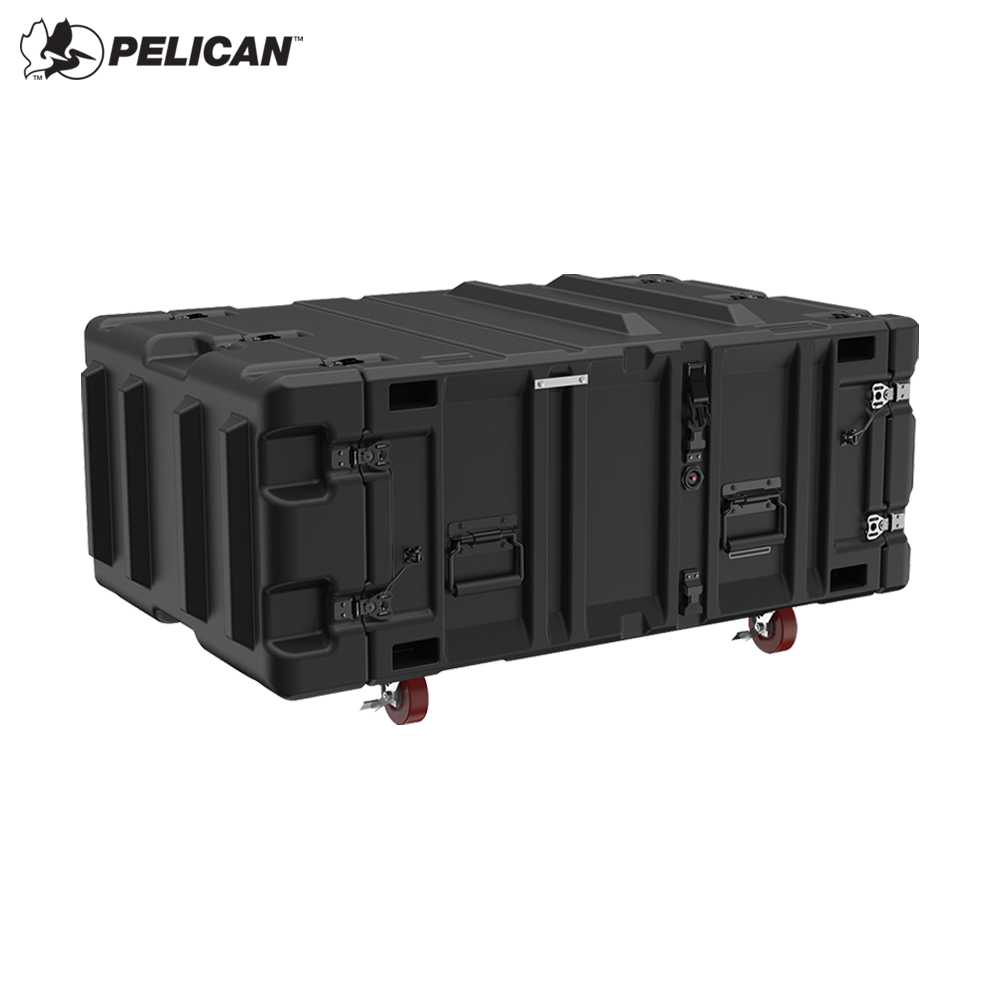

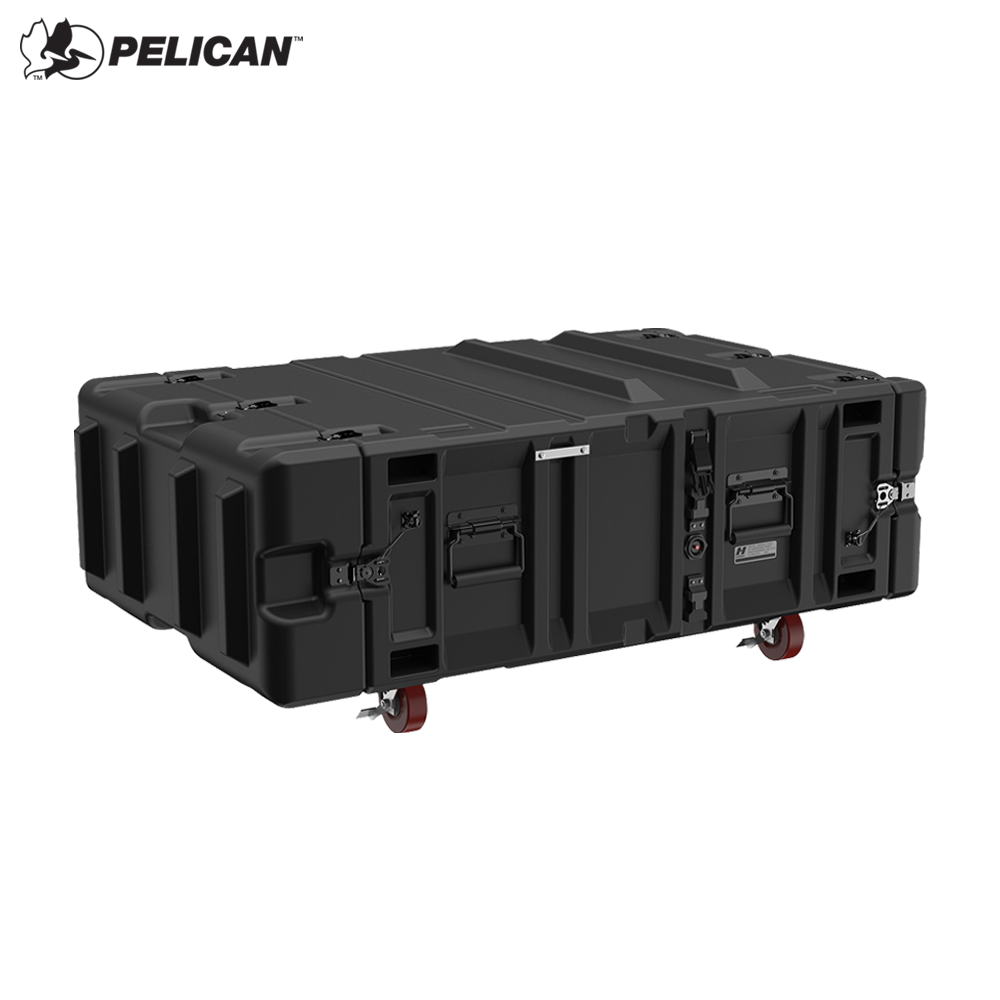

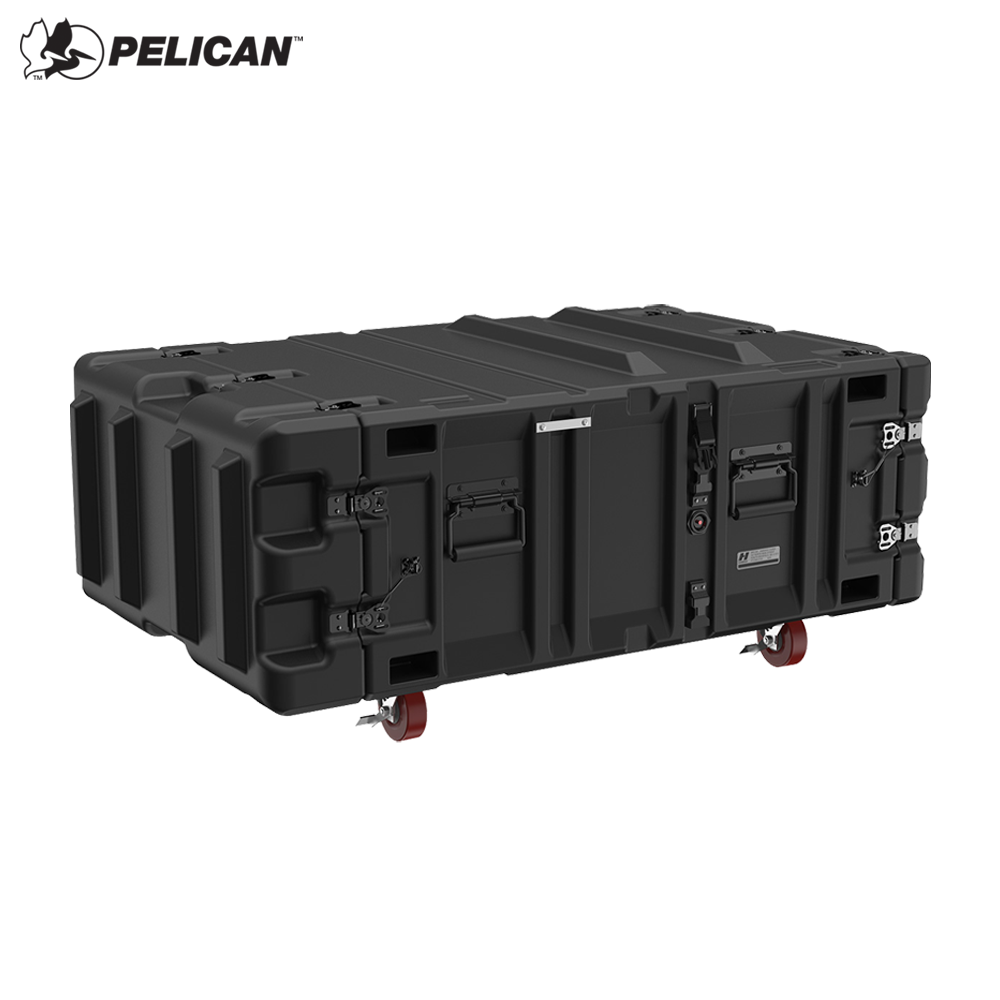

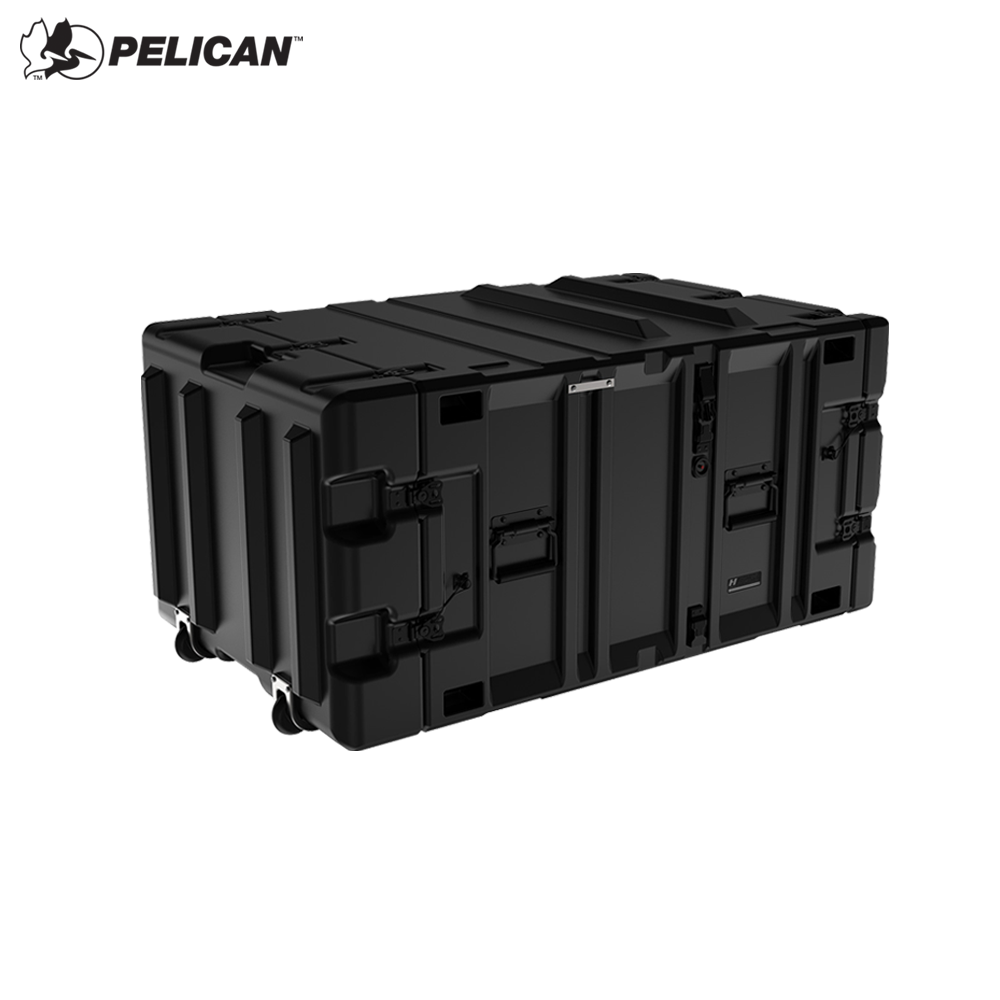

33" Classic-V Rack Mount Case is a smooth surface case with a 19" wide and 33" deep EIA standard rack.

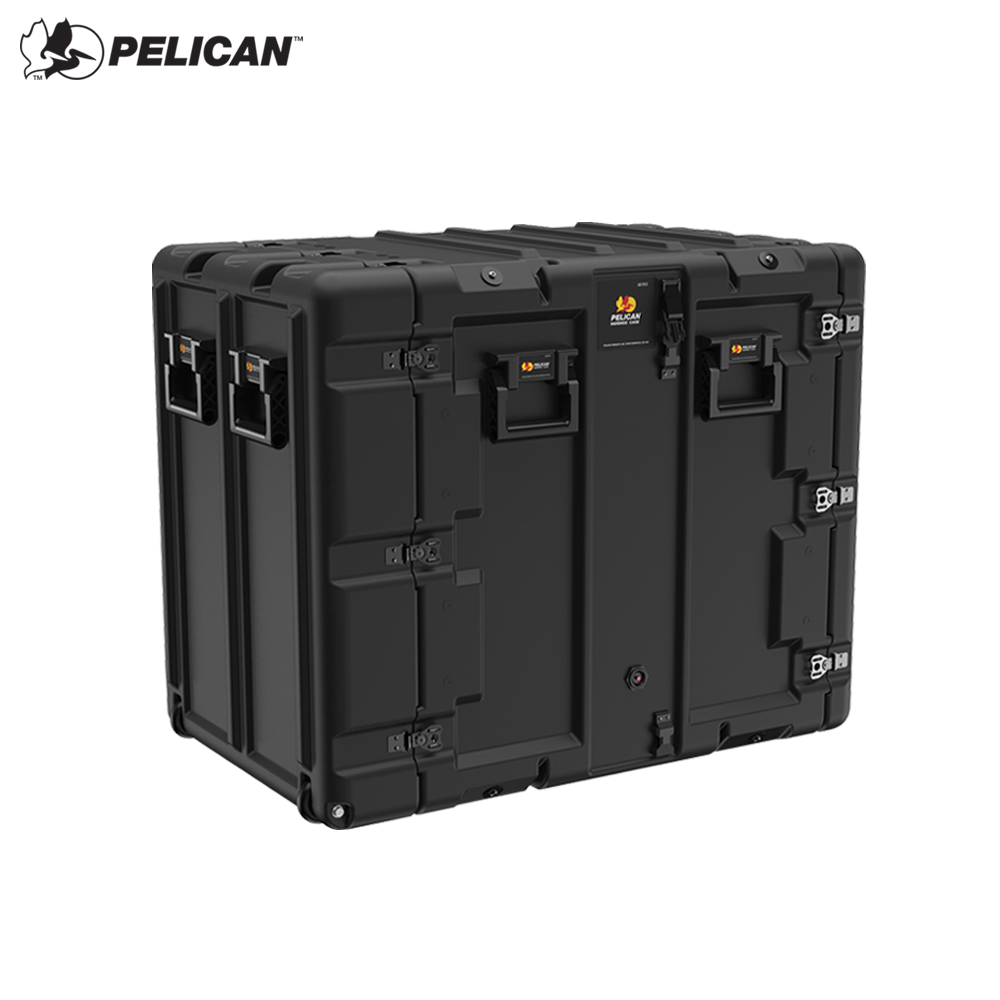

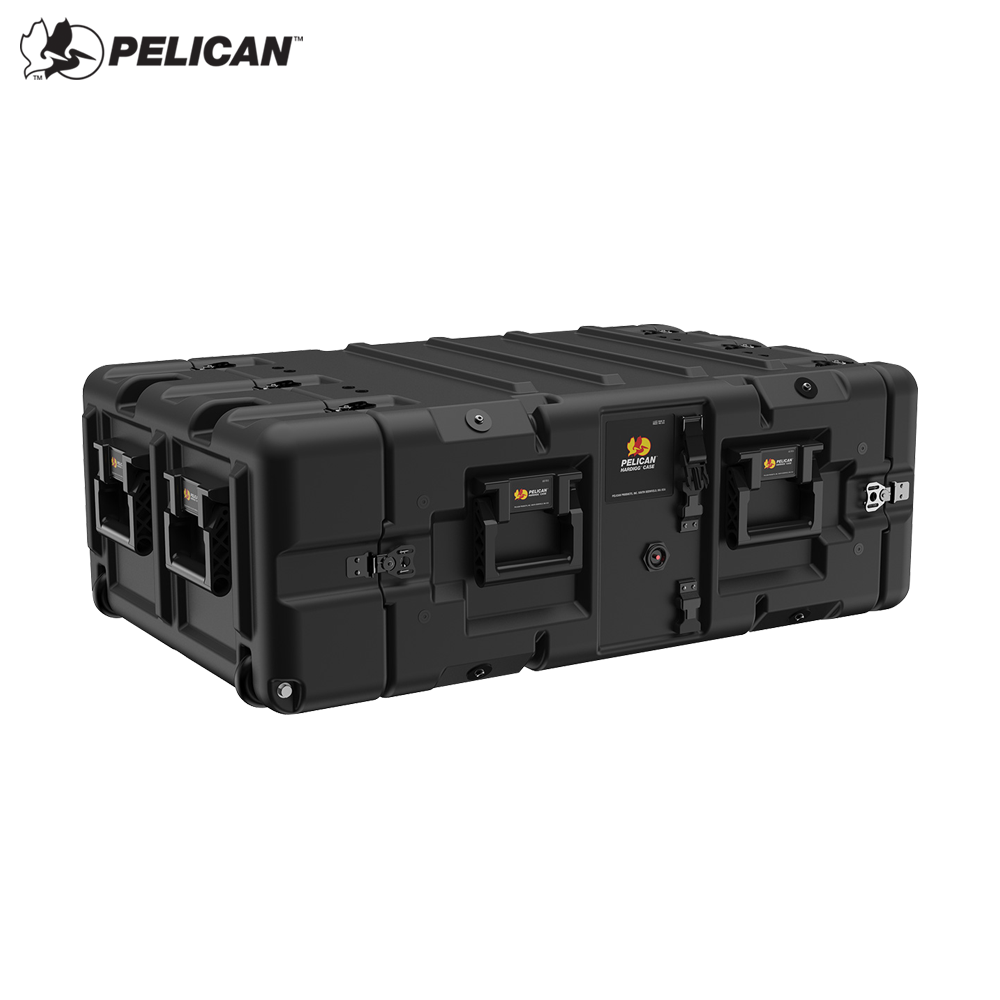

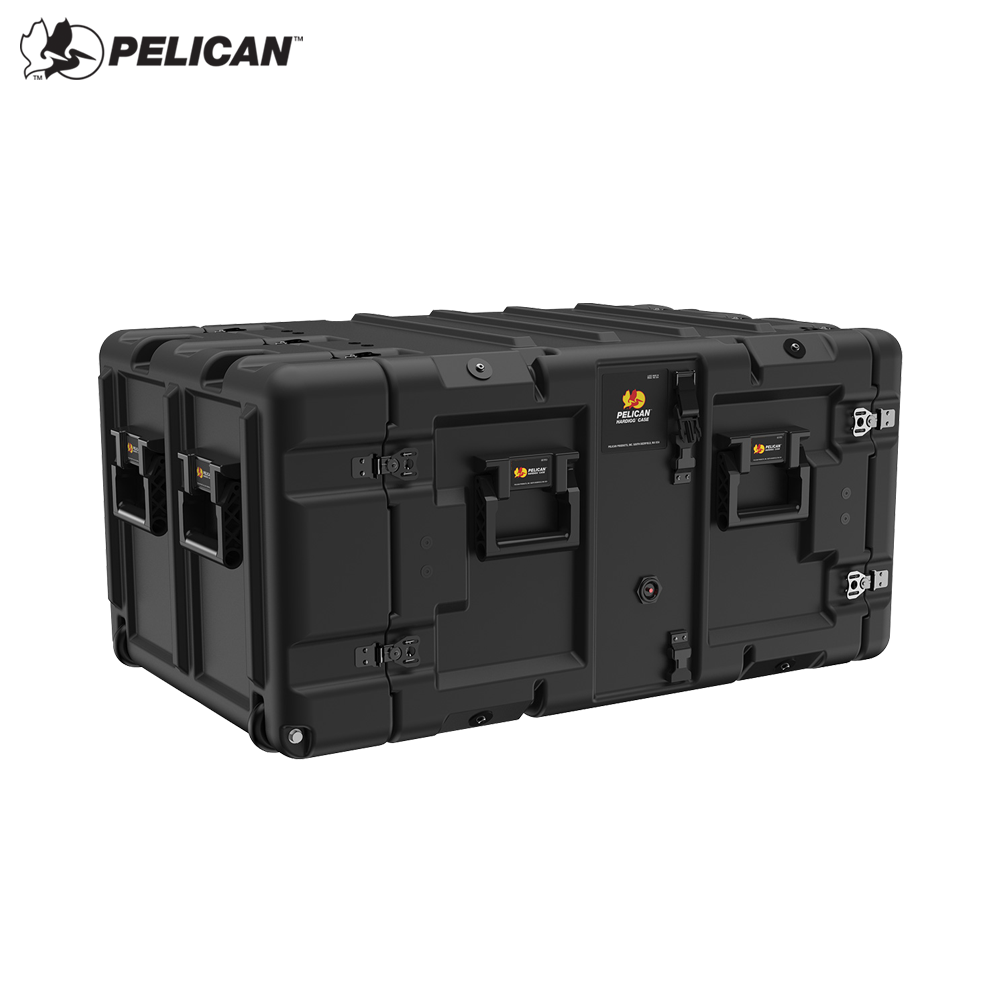

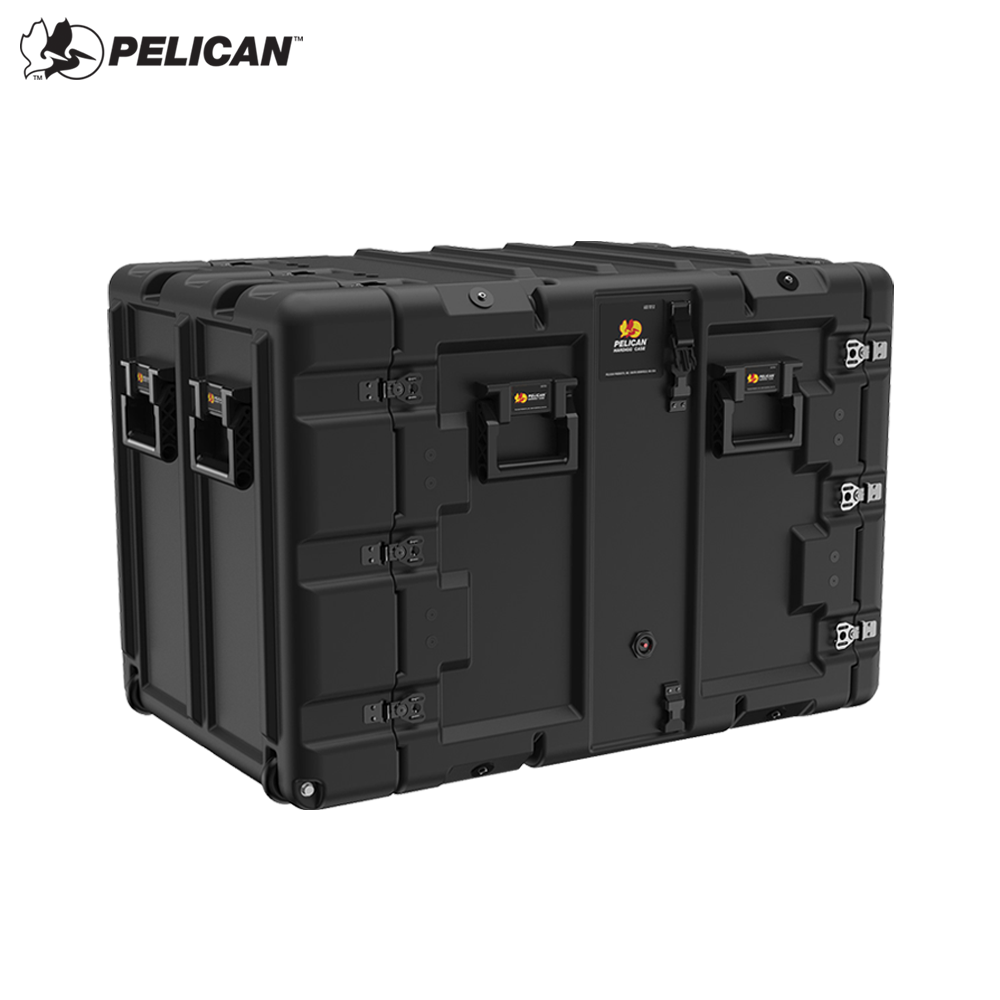

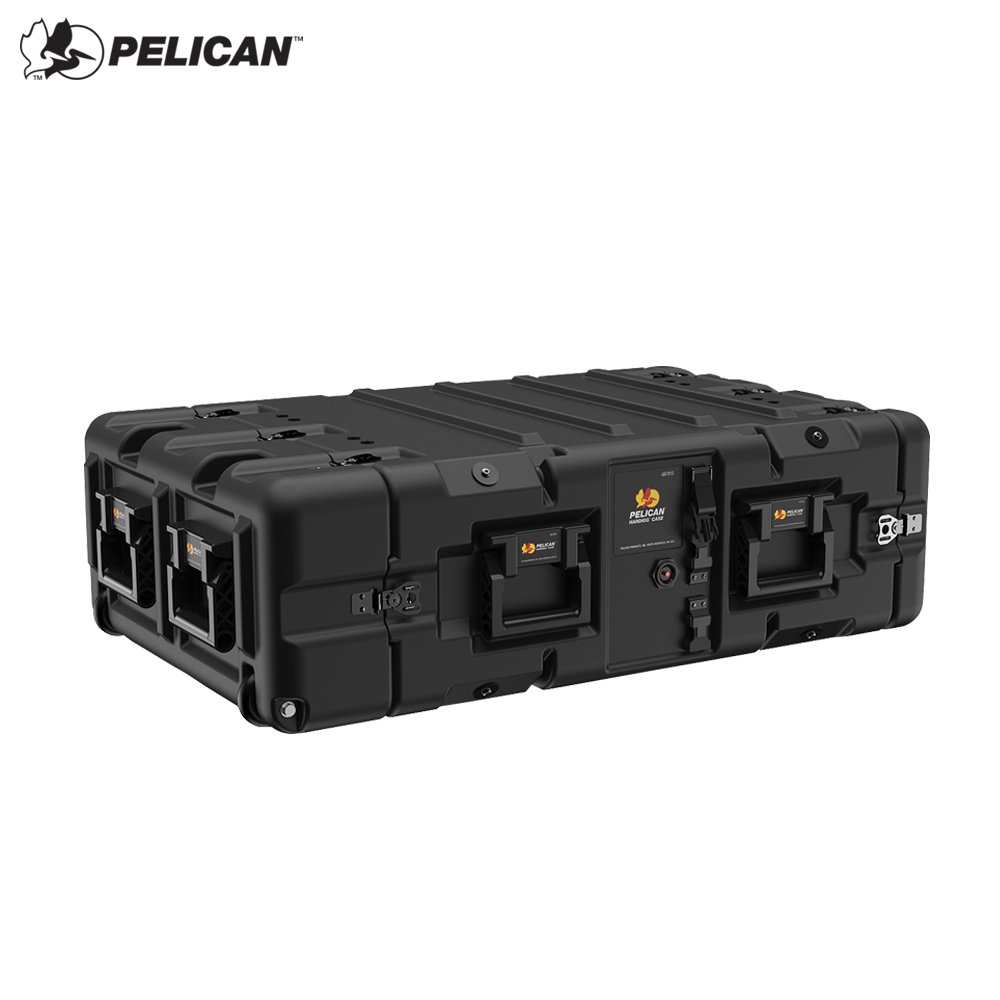

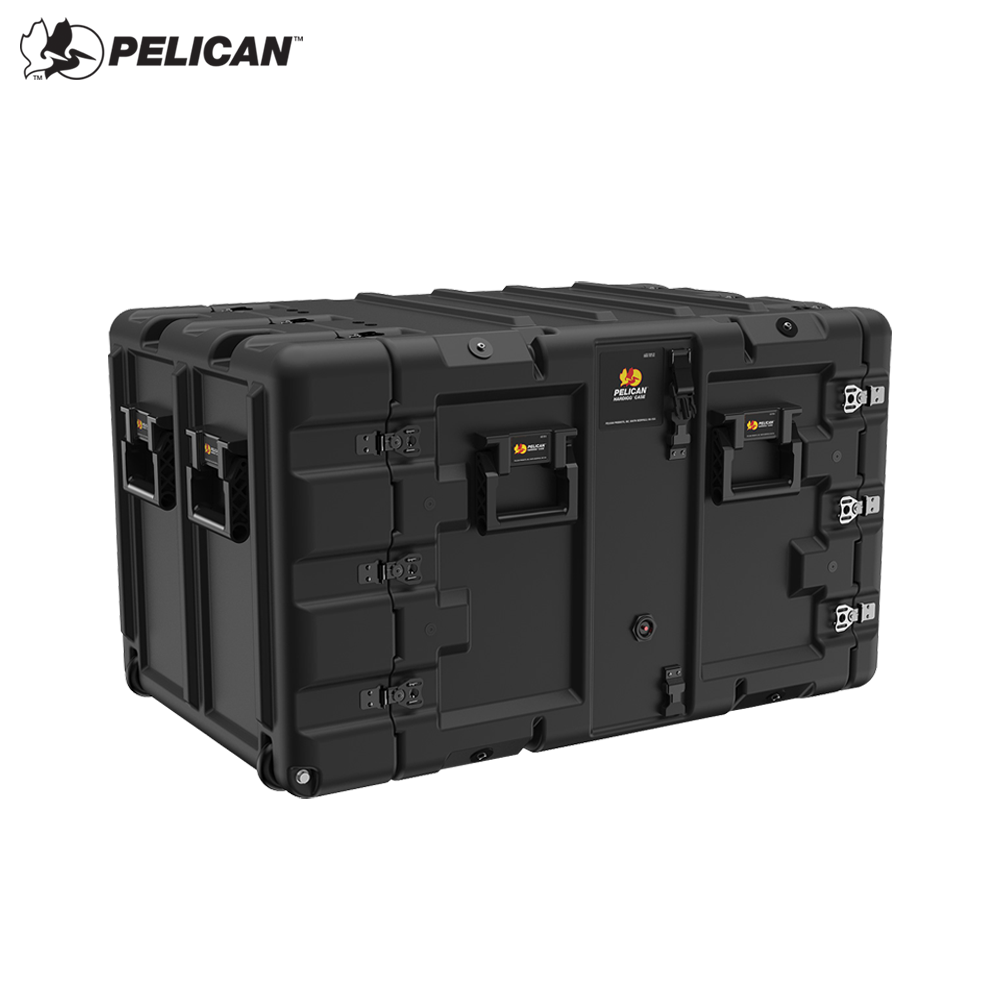

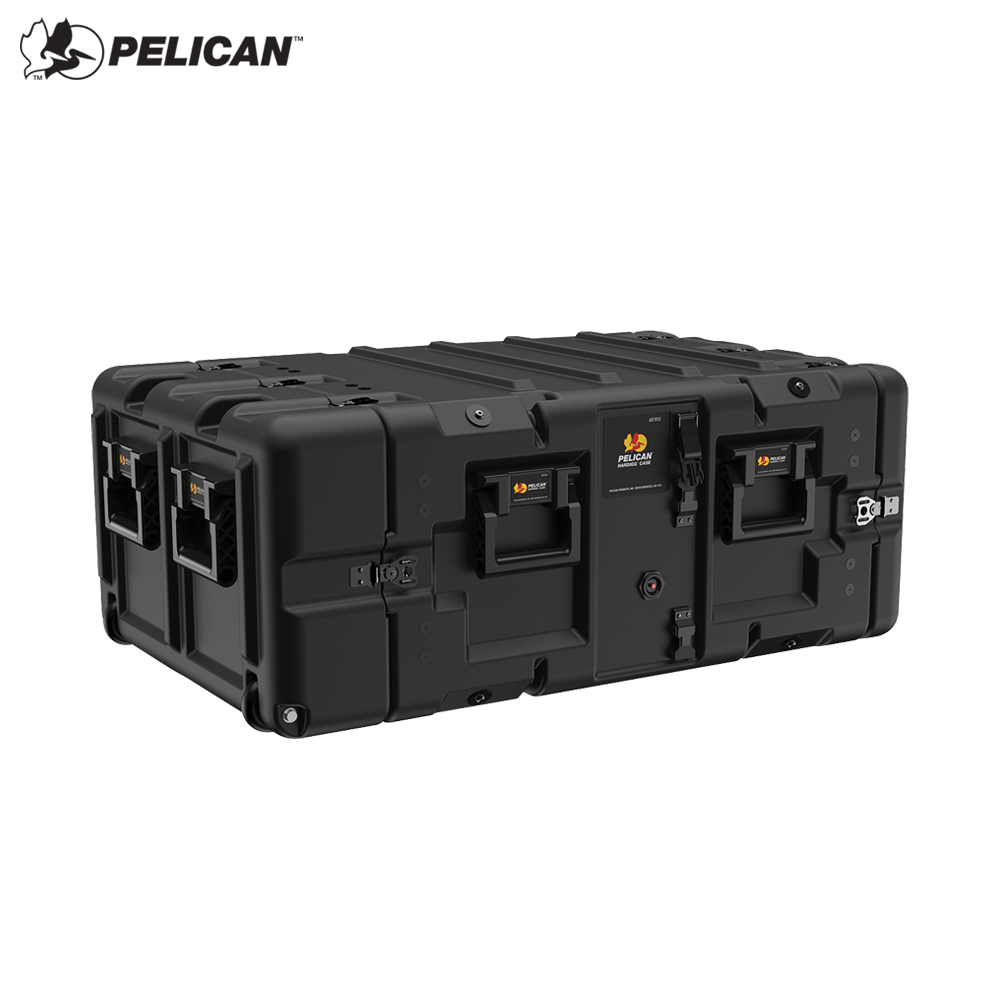

24" and 30" Super-V Rack Mount Case is a smooth surface case with a 19" wide and 24" or 30" deep EIA standard rack.

Specifications


  33" Classic-V                                            24"/30" Super-V


Sizes

  • 3U, 4U, 5U, 7U, and 9U

Sizes

  • 24": 3U, 4U, 5U, 7U, 9U, 11U and 14U
  • 30": 3U, 5U, 7U, 9U


Payload

  • 3U, 4U, and 5U are 80 - 100 lbs. (45.4 kg)
  • 7U and 9U are 100 - 170 lbs. (45.4 kg - 77kg)

Payload

  • 3U, 4U, and 5U are 80 - 100 lbs. (45.4 kg)
  • 7U, 9U, 11U, 14U are 100 - 170 lbs. (45.4 kg - 77kg)



Sway Space

  • 1.4"

Sway Space

  •  1"



Rolling Features

  • Sizes 3U, 4U, 5U: 3.5" Swivel Casters
  • Sizes 7U and 9U: Edge Casters


Rolling Features

  • Edge Casters



Base Features

  • Color: Black
  • Zinc Cobalt Black Non-Locking Catch-and-Strike Hardware (HCB)
  • Pressure Relief Valve and Closed Loop Gasket
  • Lid Hangers and Coupling Catches
  • Steel Square Hole Rack Frame
  • Molded-in Stacking Ribs
  • Universal Cage Nut Kit with #10-32 UNF and M6 Metric cage nuts
  • Black Stainless Steel Handles (33" Classic-V)
  • Comfort Grip Plastic Handles (24" Super-V)


Shock/Vibration System


Wall Mounted Cylindrical shocks on V-Rack cases are attached directly to the case wall. They isolate equipment from vibration as well as impact forces. This shock mount design is used for lower payload weight applications.





Applications


> Professional A/V

> Music and Entertainment Industry

> Small Office Infrastructure

> Mobile Video/Photography

> News Reporting

> Prosumer/Commercial Drone Control

> HDD or Connected Server for App/Game Development







Customization


Classic Rack cases are fully configurable and made to order. They can also be customized by our Technical Sales solution team. Call if you need a 1U extension to any of these standard U sizes.



Catalog
U Size
Rack Depth
Lid Depth
Back Lid Depth
Weight

CLASSIC-V-SERIES-3U

3U
33.00"
(83.8 cm)
2.50"
(6.4 cm)
5.25"
(13.3 cm)
51 lbs

CLASSIC-V-SERIES-4U

4U
33.00"
(83.8 cm)
2.50"
(6.4 cm)
5.25"
(13.3 cm)
54 lbs

CLASSIC-V-SERIES-5U

5U
33.00"
(83.8 cm)
2.50"
(6.4 cm)
5.25"
(13.3 cm)
56 lbs

CLASSIC-V-SERIES-7U

7U
33.00"
(83.8 cm)
2.50"
(6.4 cm)
5.25"
(13.3 cm)
65 lbs

CLASSIC-V-SERIES-9U

9U
33.00"
(83.8 cm)
2.50"
(6.4 cm)
5.25"
(13.3 cm)
72 lbs


Catalog
U Size
Rack Depth
Lid Depth
Back Lid Depth
Weight

SUPER-V-SERIES-3U-30

3U
30.00"
(76.2 cm)
2.20"
(5.6 cm)
5.20"
(13.2 cm)
54 lbs

SUPER-V-SERIES-3U

3U
24.00"
(61 cm)
2.20"
(5.6 cm)
5.20"
(13.2 cm)
50 lbs

SUPER-V-SERIES-4U

4U
24.00"
(61 cm)
2.20"
(5.6 cm)
5.20"
(13.2 cm)
53 lbs

SUPER-V-SERIES-5U

5U
24.00"
(61 cm)
2.20"
(5.6 cm)
5.20"
(13.2 cm)
55 lbs

SUPER-V-SERIES-5U-30

5U
30.00"
(76.2 cm)
2.20"
(5.6 cm)
5.20"
(13.2 cm)
59 lbs

SUPER-V-SERIES-7U

7U
24.00"
(61 cm)
2.20"
(5.6 cm)
5.20"
(13.2 cm)
60 lbs

SUPER-V-SERIES-7U-30

7U
30.00"
(76.2 cm)
2.20"
(5.6 cm)
5.20"
(13.2 cm)
65 lbs

SUPER-V-SERIES-9U

9U
24.00"
(61 cm)
2.20"
(5.6 cm)
5.20"
(13.2 cm)
64 lbs

SUPER-V-SERIES-9U-30

9U
30.00"
(76.2 cm)
2.20"
(5.6 cm)
5.20"
(13.2 cm)
69 lbs

SUPER-V-SERIES-11U

11U
24.00"
(61 cm)
2.20"
(5.6 cm)
5.20"
(13.2 cm)
69 lbs

SUPER-V-SERIES-14U

14U
24.00"
(61 cm)
2.20"
(5.6 cm)
5.20"
(13.2 cm)
74 lbs
